Product Specifications

Business functions

Tiantong Internet of Things data: used for data return, ground network data: used for OTA upgrade, data return

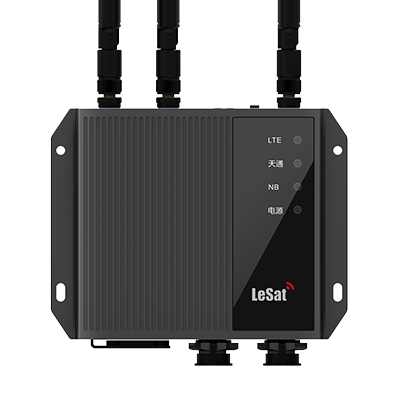

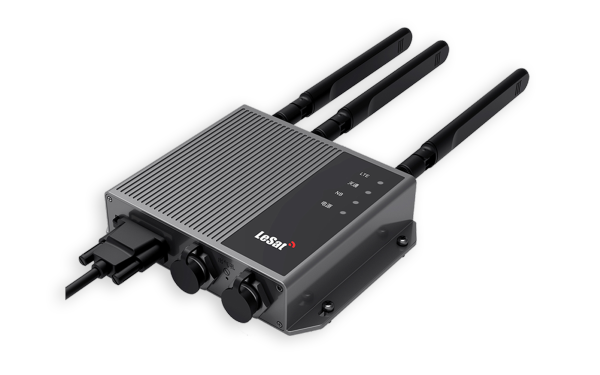

Exterior

Dimensions (length*width*height): 154*120*34mm, color: black, material: aluminum alloy

Hardware Configuration

CPU: quad-core A7, CPU frequency: main frequency 1.1GHz, memory: 1GB RAM; 8GB ROM, antenna: external omnidirectional satellite antenna, GPS/Beidou antenna, 4G antenna, positioning: GPS/Beidou

use environment

Working temperature: -20℃～+50℃, storage temperature: -40℃～+70℃

 Features

● Multi-communication mode switching

Lezhong Tiantong IoT terminal supports Tiantong IoT data service and 4G (NB-IOT) data service at the same time, in order to meet the data transmission requirements of different signal coverage environments. The combination of satellite data and full Netcom 4G (NB-IOT) data transmission can meet the needs of the Internet of Things in all scenarios.

● Strong interface scalability

Lezhong Tiantong Internet of Things terminal has commonly used RJ45, RS232, RS485 external device communication serial ports, and also has a customizable expansion interface to meet the customization needs of customers in different industries, and the interface has strong scalability.

● wide voltage power supply

The power input terminal of Lezhong Tiantong IoT terminal supports a wide voltage input of 9~36V, which can avoid equipment damage caused by voltage changes under complex working conditions. It is suitable for wide-voltage input use scenarios without stable mains access environment, as well as the use of emergency power supply environment under emergency conditions, and meets the use requirements of fishery, electric power, and emergency rescue fields under unstable power supply conditions.
