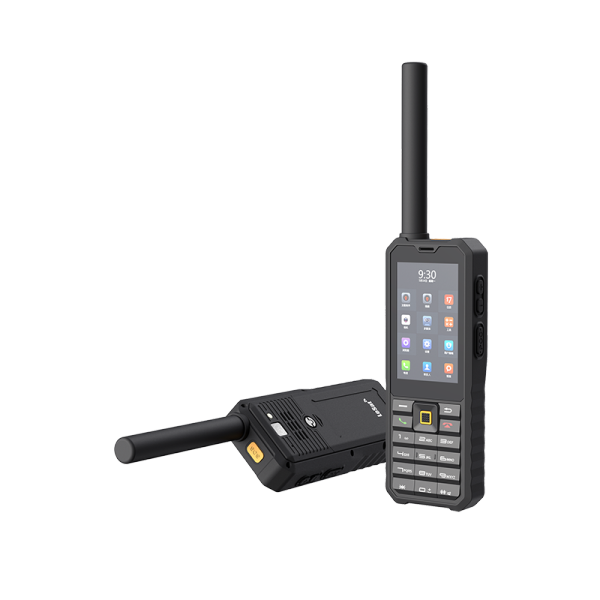

Product specifications

physical dimension

Size: 155×58×25.5mm (excluding antenna)

Display: 480*8003.1 inches, HD highlight + capacitive touch

System storage

System: Android 8.1 operating system

Storage: 1GB RAM+8GB ROM

Performance configuration

Battery: ≥5000 mAh lithium battery; standby time: ≥160 hours; working time: ≥12 hours

Speaker: 2W loud speaker

Charger: 5V/2A, supports 3A charging current

Sensors: Gravity sensor, geomagnetic sensor, gyroscope

Scalability: Can be connected to vehicle-mounted omnidirectional antennas and handheld omnidirectional antennas; can be expanded into indoor terminals, real-time online

Protection level

Protection level: IP68

1.5 meters drop-proof, waterproof, dust-proof, 1 meter underwater and one-hour immersion resistant

 Features

Support Tiantong-1 satellite network;

SOS—key call function;

IP68, waterproof to 1 meter;

Large capacity battery, long standby time;

IP68 protection level	Support Tiantong satellite	SOS one-click survival
5000mAh lithium battery	GPS, Beidou positioning	Support Tiandiyi card
