Product specifications
physical dimension
Size: 158×56.5×20mm (excluding antenna)
Display: 480*8003.1 inches, capacitive touch screen, multi-touch
System storage
System: Android 12 operating system
Storage: 2GB RAM+16GB ROM, can support 64G TF card expansion
Performance configuration
Battery: ≥5000mAh lithium battery; standby time: ≥160 hours; working time: ≥10 hours
Speaker: 2W loud speaker
Sensors: light/distance sensor, gravity/acceleration sensor, geomagnetic sensor, gyroscope
Scalability: Can be connected to vehicle-mounted omnidirectional antennas and handheld omnidirectional antennas; can be expanded into indoor terminals, real-time online
Protection level
Protection level: IP68, waterproof, dustproof, 1.5 meter drop resistant
Features
Supports two modes (4G terrestrial network, satellite network) with one card; no need to change cards or restart, you can directly switch modes;
One-click SOS emergency help function, which can make satellite calls to designated numbers and send location information;
Supports 400-480MHz analog or DMR digital intercom;

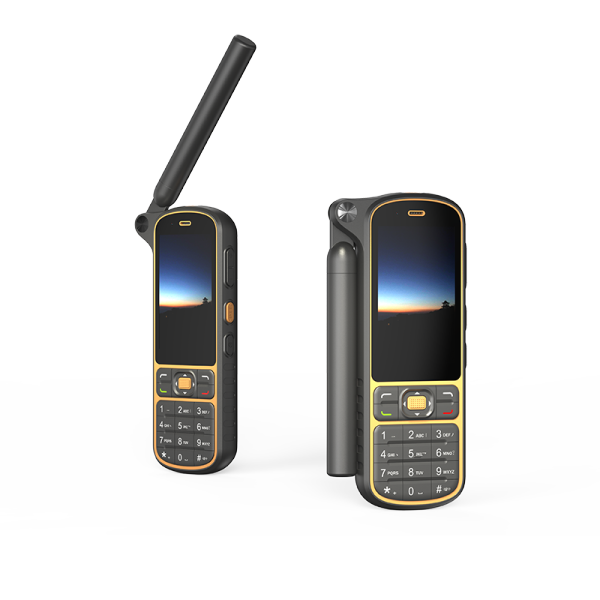

The antenna adopts a folding design, and the folding angle can reach 225°; the antenna status is automatically monitored, and the antenna can be opened to automatically search for stars; it also supports antenna disassembly, and the outdoor antenna supports expansion of a 50-meter passive antenna;
 |  |  |
| IP68 protection level | Support Tiantong satellite | SOS one-click survival |
 |  |  |
| 5000mAh lithium battery | GPS, Beidou positioning | Dual SIM |
