YTD-A305A Beidou Third Generation Commander

The YTD-A305A Beidou third-generation command machine is a group command equipment that supports Beidou third-generation civil frequency. In addition to having the positioning, communication and timing functions of ordinary Beidou equipment, the command machine can also collect the positioning and communication information of the sub-users under its jurisdiction. Multicast and broadcast information can be sent to sub-users to realize the command function for sub-users. It can be applied to power, meteorology, emergency, public security, civil defense, ocean, forestry and other fields.
400-990-2806
  • Product Details
  • Application Scenario

  • Product specifications and parameters

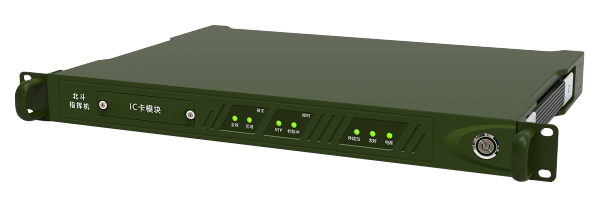

    Appearance (host)

    Host size: 425x310x46mm (excluding angle)

    Host weight: 4kg

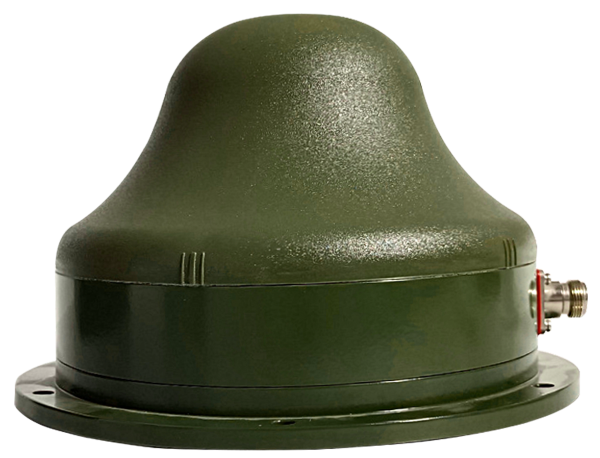

    Antenna size: medium 220X147mm (connector protruding 3mm)

    Antenna weight: 3kg

    Power supply requirements

    220V AC adapter or wide voltage DC power supply, voltage range of 9V-36V

    Standby power consumption: s15W** Instant transmission power consumption <65W

    Protection level

    IP67

    Product Highlights

    The positioning accuracy level of Beidou third generation is better than 6m and the elevation is better than 8m

    The success rate of Beidou third-generation regional short message communication:>99% (today)

    Command and acquisition - the number of subordinate subscribers is 5,000

    NTP timing accuracy: 10ms

    It has anti-adjacent frequency interference function to comply with the network entry test index

    Optional extended Beidou third-generation global short message function


  • It can be applied in power, meteorological, emergency response, public security, civil defense, ocean, forestry and other fields.
