Features

Multi-carrier COFDM technology

● Peak point-to-point throughput up to 70Mbps

● Point-to-point transmission distance over 10km (line of sight)

Portability and Ease of Use

● Out of the box

● Support configuration functions such as mobile phone and Wed, and can be remotely managed

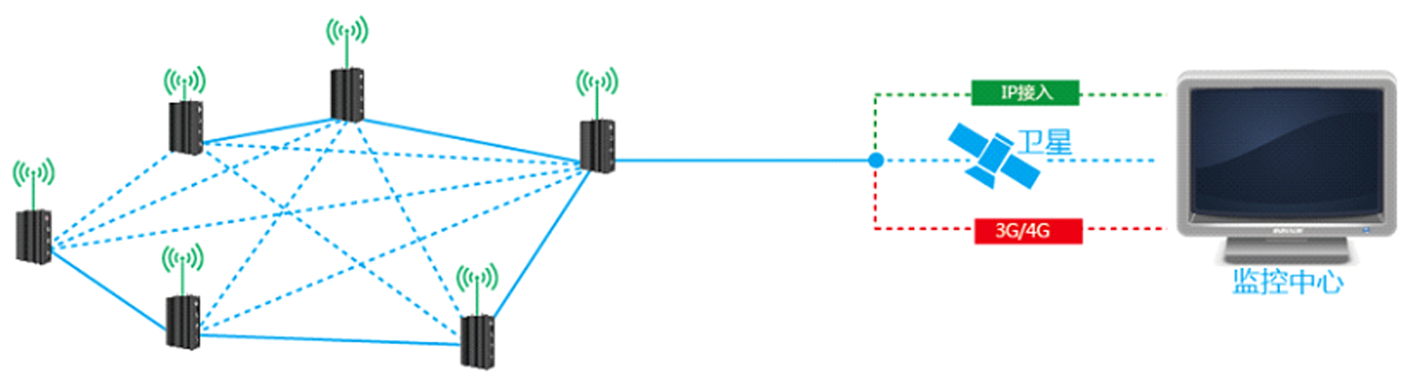

Multi-hop self-organizing network (MESH) technology

● Automatic networking, automatic calculation of network routes, without manual intervention, effectively saving manpower and material resources

● Support self-organizing network with more than 64 nodes, automatic multi-hop transmission, and realize seamless regional coverage

Customized service

● Transmission power 100mW～2W

● Working frequency range 200MHz～1.5GHz can be customized

● Signal bandwidth 2/5/10/20MHz adjustable

 technical indicators

physical properties

● Working temperature -20℃～50℃

● Protection class IP65

● Dimensions ≤470mm×357mm×176mm (L*W*H)

Networking function

● Networking capability Support more than 64 nodes

● Number of network hops > 8 hops

● Network access time 8s after system startup

● Network topology Decentralized network, star network, chain network, etc.

Antenna Characteristics

● Frequency range 1438±10MHz/580±10MHz

● Bandwidth 2/5/10/20MHz adjustable

● Modulation method COFDM

● Transmission rate peak value 70Mbps@20MHz

● Transmission distance >10km (line of sight)

● Transmission power 100mW～2W (adjustable)

System parameters

● Peripheral interface USB, network port, audio port, HDMI interface

● Control function Support network management system platform

● System upgrade Support one-key upgrade and remote upgrade

● Other functions GPS/Beidou/WiFi

● Power consumption ≤70W (2W)
