LeSat X1-Broadband Ad hoc Network Handheld Terminal

LeSat X1 is implemented based on the software radio architecture system. It integrates key technologies such as self-developed COFDM waveform, high-efficiency channel coding and decoding algorithm, and centerless multi-hop ad hoc network protocol. It has strong environmental adaptability and can quickly build The wireless broadband communication network between mobile points such as vehicles, drones and fixed points ensures the smooth transmission of video, voice and data services.
  • Brand：injured
  • Model：LeSat X1
  • MOQ：1
  • Specification：tower
  • Package Instruction：Matching wiring and packing bo
400-990-2806
  • Product Details
  • Application Scenario
  • Network topology diagram

  •  Product Specifications

    Exterior

    Dimensions (L*W*H): 165*65*27.5 mm, material: all metal + plastic external antenna, display: 3.1-inch touch screen

    network format

    Ad hoc network: 1.4GHz (1420MHz-1470MHz), 600MHz (638MHz-678MHz)

    Hardware Configuration

    CPU: octa-core, memory: RAM 3GB LPDDR3, ROM 32GB EMMC, Bluetooth: Bluetooth 4.0, antenna: GPS/WIFI/BT, ZZW (1.4G+600M), interface: TYPE-C interface, USB2.0, camera: front Built-in 5 million pixels, rear 8 million pixels, battery: built-in detachable, 7.4V, capacity 4000mAh, positioning: Beidou, GPS, GLONASS, AGPS

    Optional standard

    public net

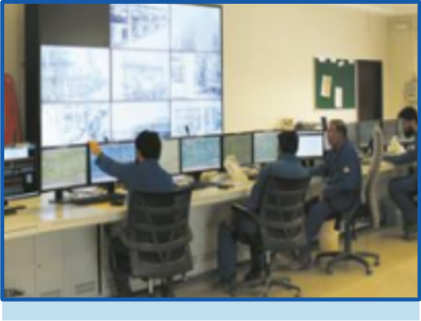

  • Application ScenarioVideo, Voice SchedulingHaitian integrated network


  • 0a1da88a857097bcff1206c4e5d56fc0_rBwBEmQME6yATF7sAAI0nUdmCRQ856.png
