Features

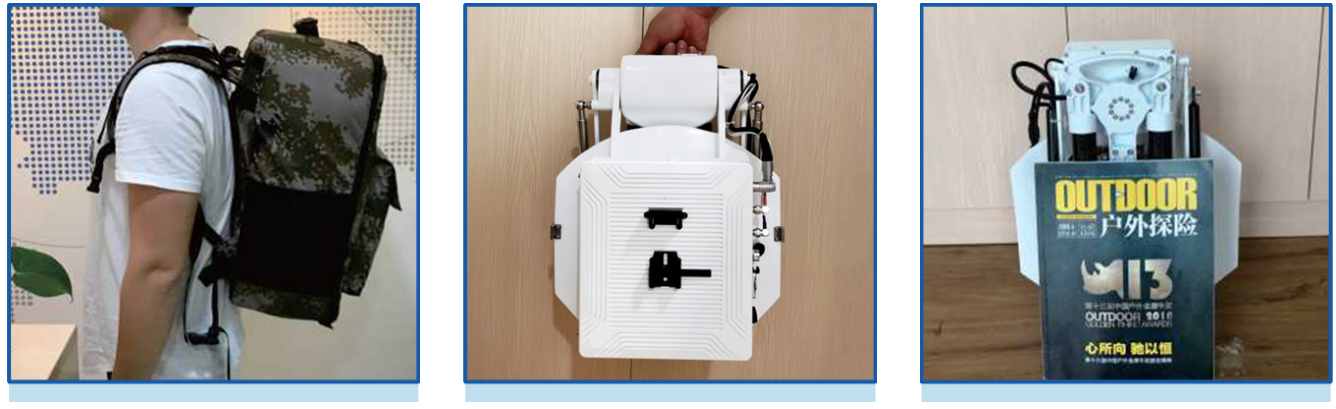

portable

● Light weight (≤9kg)

● small size

● Backpackable

● Car-mountable

high performance

● Precise transmission structure plus self-locking function

● Ensure high tracking accuracy in harsh environments

easy to use

● Integrated design

● Three minutes to assemble

● Automatic star alignment with one key

● Instant access to satellite WiFi hotspots

 Device parameters

physical size

● Collection size 465x330x220 mm(L*W*H); 540x380x280 mm(L*W*H) including bag

● Equipment weight Stand-alone ≤9kg (without battery); with soft pack battery and charger ≤12.5kg

Satellite Terminal Index

● Frequency range Receive 10.7 ~ 12.75GHz; transmit 13.75 ~ 14.5GHz

● Polarization mode Linear polarization, automatically adjustable

● G/T ≥15.76dB/K(20℃)

● Antenna gain Receive ≥34.4dBi@14.5GHz; Transmit ≥33.2dBi@12.75GHz

● The power consumption of the whole machine is not more than 90W

● Antenna surface 0.45m equivalent aperture, parabolic offset antenna

● Antenna efficiency ≥85%

● Star alignment time ≤2 minutes, cold start

● Alignment mode One-key automatic star alignment

● Azimuth, elevation, polarization range Unlimited azimuth; elevation 10° ~ 90°; fully automatic polarization ±90°

● Supporting power 6W/8W

● The first level side lobe of azimuth plane ≤-14dB

● Supporting satellite modem Internal integration, Modem can be selected according to customer requirements, such as IQ200, SatBox620, Gilat Capricon-4, Newtec2500, Newtec2510, etc.

Interface Features

● Power supply 9-24V DC

● Standard battery 16.8V, 190Wh

● Data interface 1 Ethernet RJ-45 interface, built-in WIFi

Environmental characteristics

● Wind resistance Work: 55km/h (seven-level wind) normal work

● Temperature Working temperature: -25℃ ~ +55℃, storage temperature: -40℃ ~ +70℃

● Working temperature 0 ~ 95% (no condensation)

● Protection class IP66
