Features

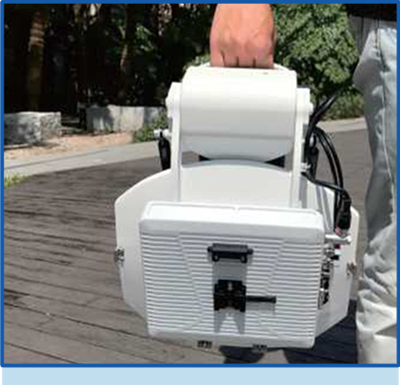

portable

● Light weight (host 7kg)

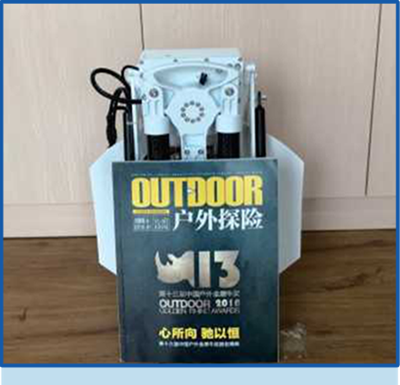

● small size

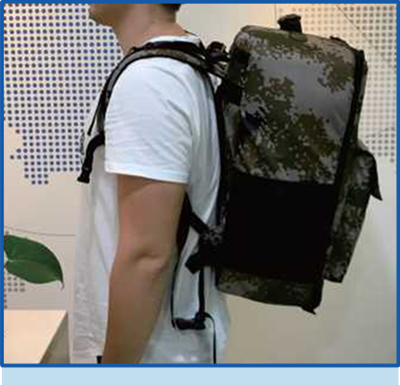

● Backpackable

● Car-mountable

high performance

● Precise transmission structure plus self-locking function

● Ensure high tracking accuracy in harsh environments

easy to use

● Integrated design

● Three minutes to assemble

● Automatic star alignment with one key

● Instant access to satellite WiFi hotspots

 Device parameters

physical size

● Storage size Ka-band antenna 410x318x290 mm (length*width*height)

● Weight Host ≤7kg, whole machine ≤10kg (including battery and backpack)

● Dimensions ≤470mm×357mm×176mm (L*W*H)

Satellite Terminal Index

● Frequency GHz Tx:9.0 ~ 30.0GHz/Rx:18.7 ~ 20.2GHz

● Gain 41.15dBi@29.5GHz/37.75dBi@19.75GHz

● Polarization circular polarization, left/right hand adjustable

● Amplifier 4W

● Antenna surface 0.45m paraboloid, 3-lobed, carbon fiber material, offset feed

● Azimuth angle unlimited

● Speed up to 30°/s

● Star time W2min, cold start

electrical characteristics

● Motor type Brushless DC

● Network port Ethernet interface: RJ45, WiFi standard: IEEE 802.11 b/g/n

● Power supply 12 ~ 24V DC, 60Wmax

Environmental characteristics

● Wind speed Work: 55km/h (level seven wind), survival: 72km/h (level eight wind)

● Temperature Working: -25℃ ~ +55℃, Storage: -40℃ ~ +70℃

● Protection class IP66
